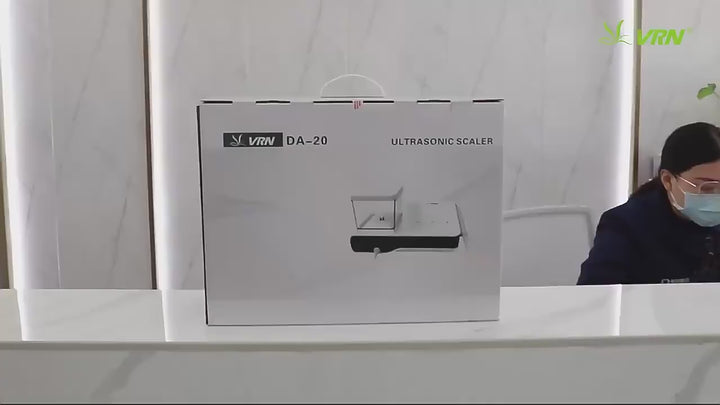

VRN DA-20 Wireless Dental Ultrasonic Piezo Scaler with LED Handpiece Fit EMS Woodpecker

Features:

The irrigation system uses antibacterial materials. Common clinic liquids such as hydrogen peroxide, chlorhexidine, and sodium hypochlorite can be applied through the automatic water supply mode.

The handpiece can be sterilized at 135℃ temperature and 0.22 MPa pressure.

The device adjusts working conditions automatically.

Built-in microprocessing chip for controlled power management.

Wireless foot switch allows remote operation; Wired foot switch is also available if preferred.

LED light supports improved visibility during clinical use. The unit is compatible with standard plug-in handpieces.

Specifications:

Input Voltage: 220 V ±22 V～, 50/60 Hz

Input Power: 35 VA

Wireless foot switch batteries: AA ×2

Receiving sensitivity: -114 dB, frequency 2.4–2.5 GHz

Tip amplitude: 1 μm (min, -50% deviation) to 100 μm (max, +50% deviation)

Half deflection force: 0.1 N (min, -50% deviation) to 5 N (max, +50% deviation)

Tip vibration frequency: 18–45 kHz (varies by tip type within this range)

Tip output power: 3–20 W

Fuse: T1AH250V

Weight: 1.8 kg

Operation mode: Continuous running

Protection against electric shock: Class II equipment

Application part classification: B-type

Ingress protection: Main unit (IPX0), wired foot switch (IPX1), wireless foot switch (IPX4)

Safety classification in flammable anesthetic mixture: Non-AP, APG type equipment

Wireless Foot Switch

Emission frequency: 2.412–2.462 GHz

Modulation type: GFSK

Effective radiated power: 12 dBm

Packing List:

Main Unit ×1

PH-1 LED Scaler Handpiece ×1

Power Supply Cord ×1

Wireless Foot Control ×1

Water Bottle ×1

Scaler Tips ×13 (E14 ×1 / P1 ×2 / G2 ×1 / G1 ×2 / G4 ×2 / E1 ×1 / P4 ×1)

Endo File ×2 (#25)

O-Ring ×2

Torque Tip Wrench ×1

Endo File Wrench ×1

Waterproof Sticker ×1

Screwdriver ×1

Foot Control with Wire ×1

Tips Contrast Cord ×1

Fuse ×1;
